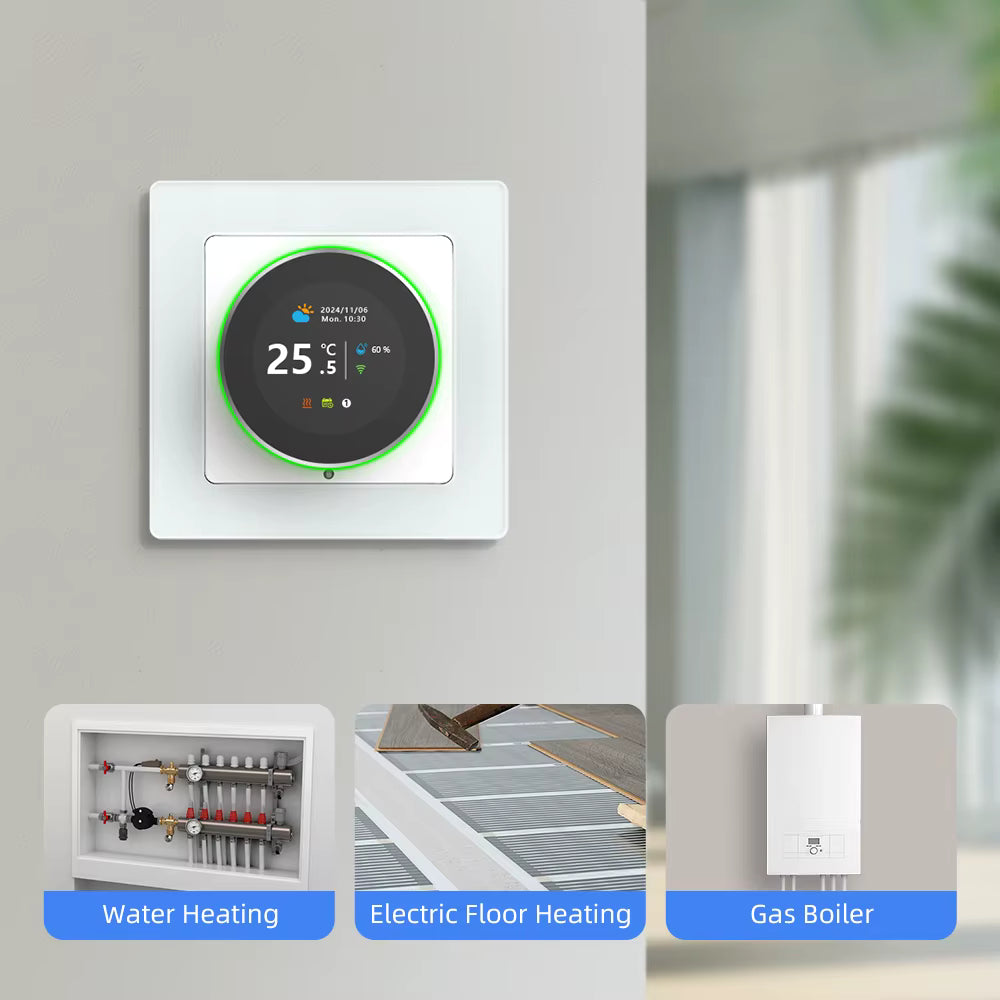

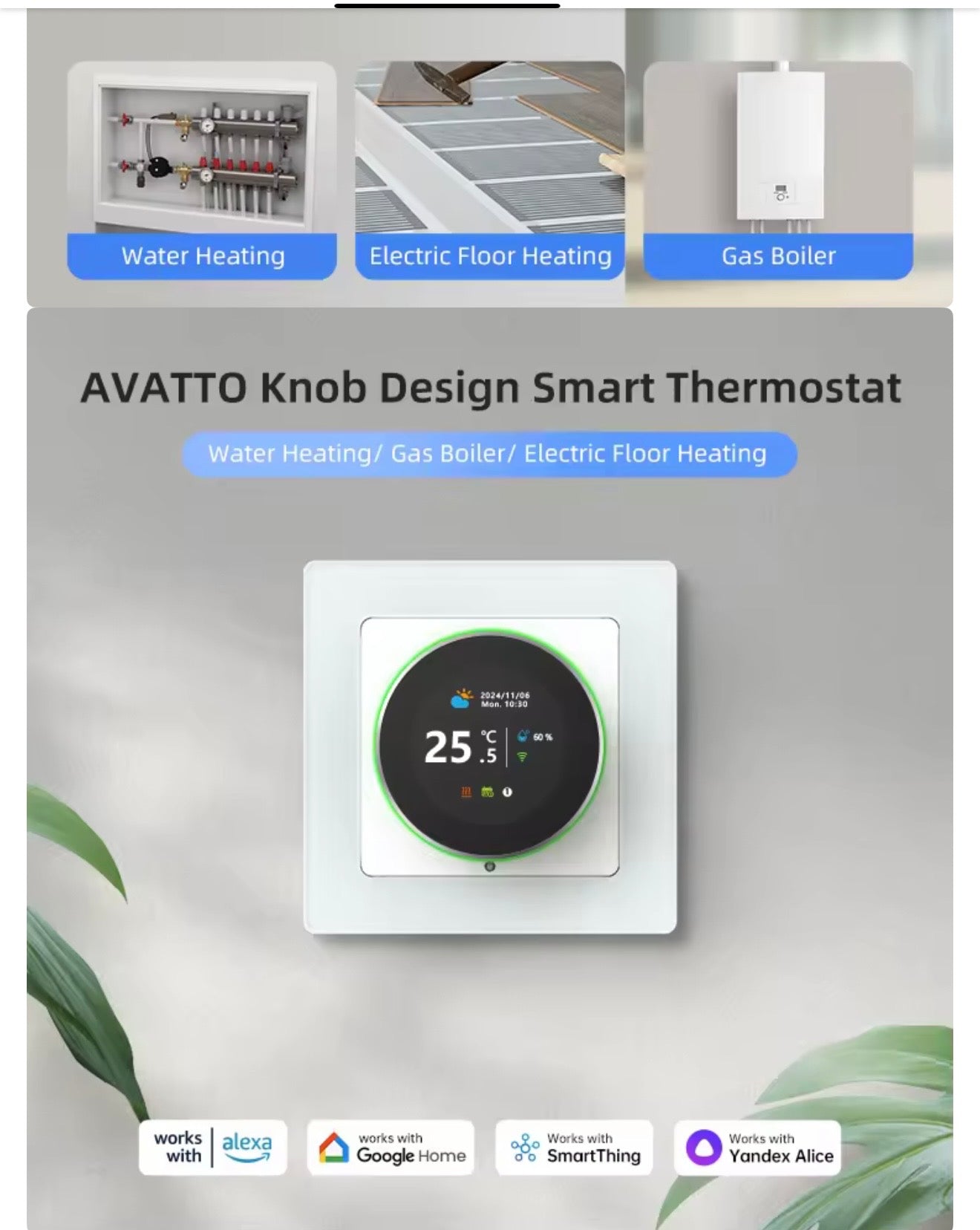

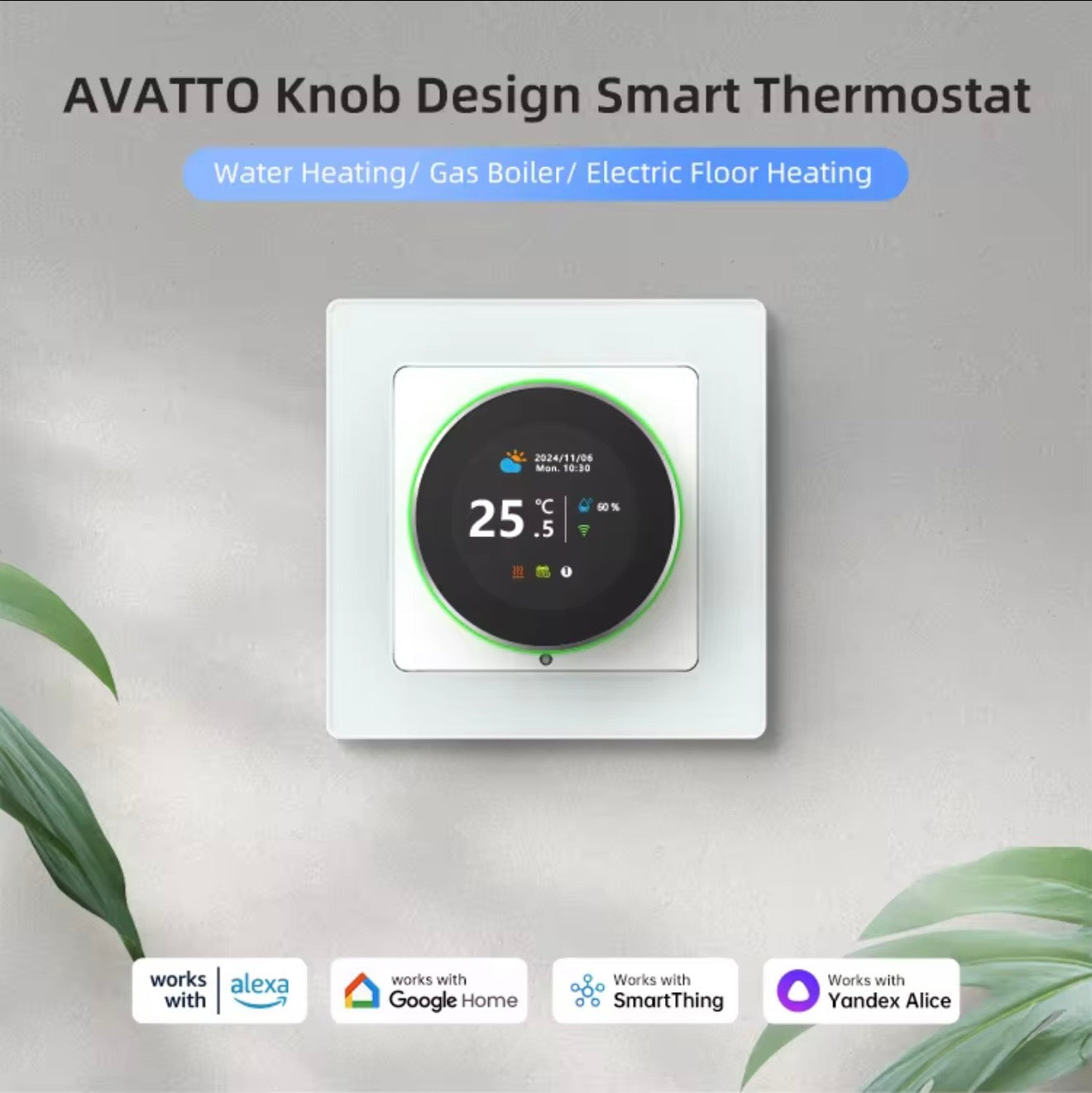

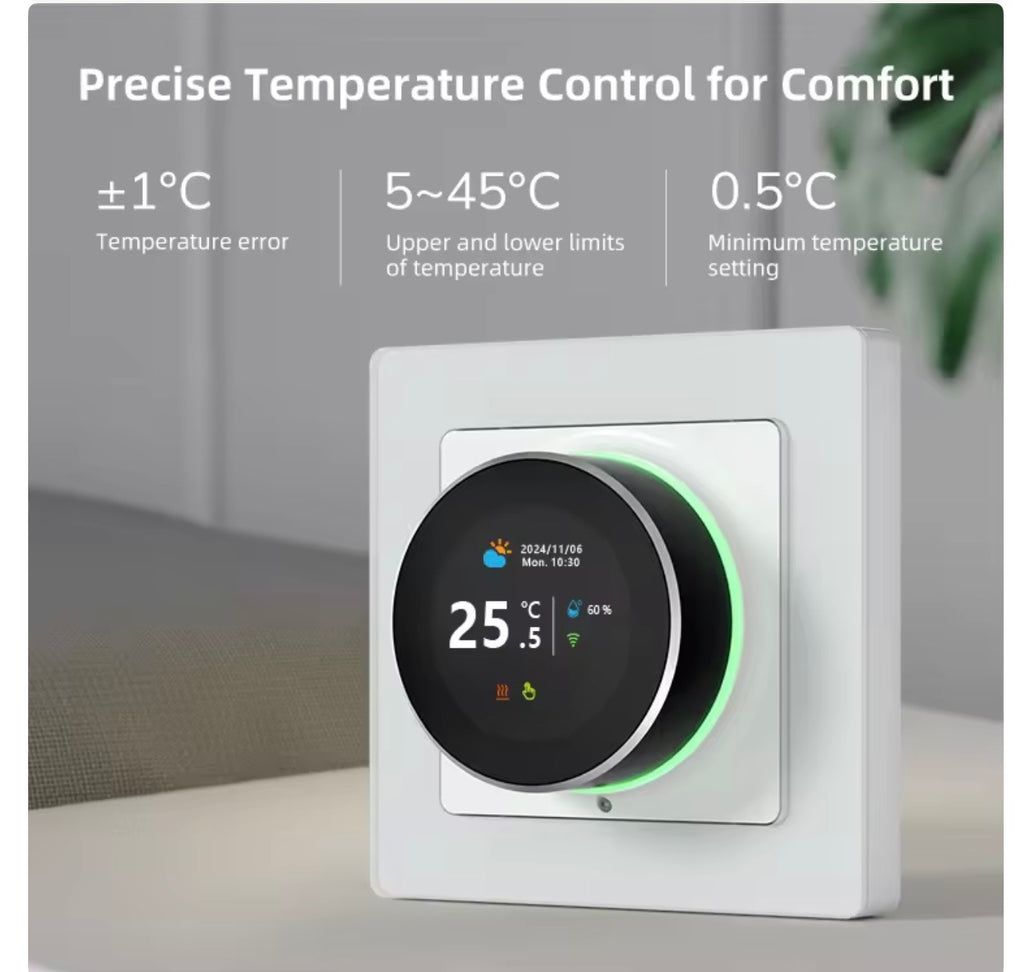

The Avatto WT20R WiFi Smart Knob Thermostat is a sleek, intelligent thermostat compatible with electric underfloor heating, water underfloor heating, and gas boilers. Featuring a rotatable knob design and a vibrant TFT screen, it's easy to use and packed with smart features.

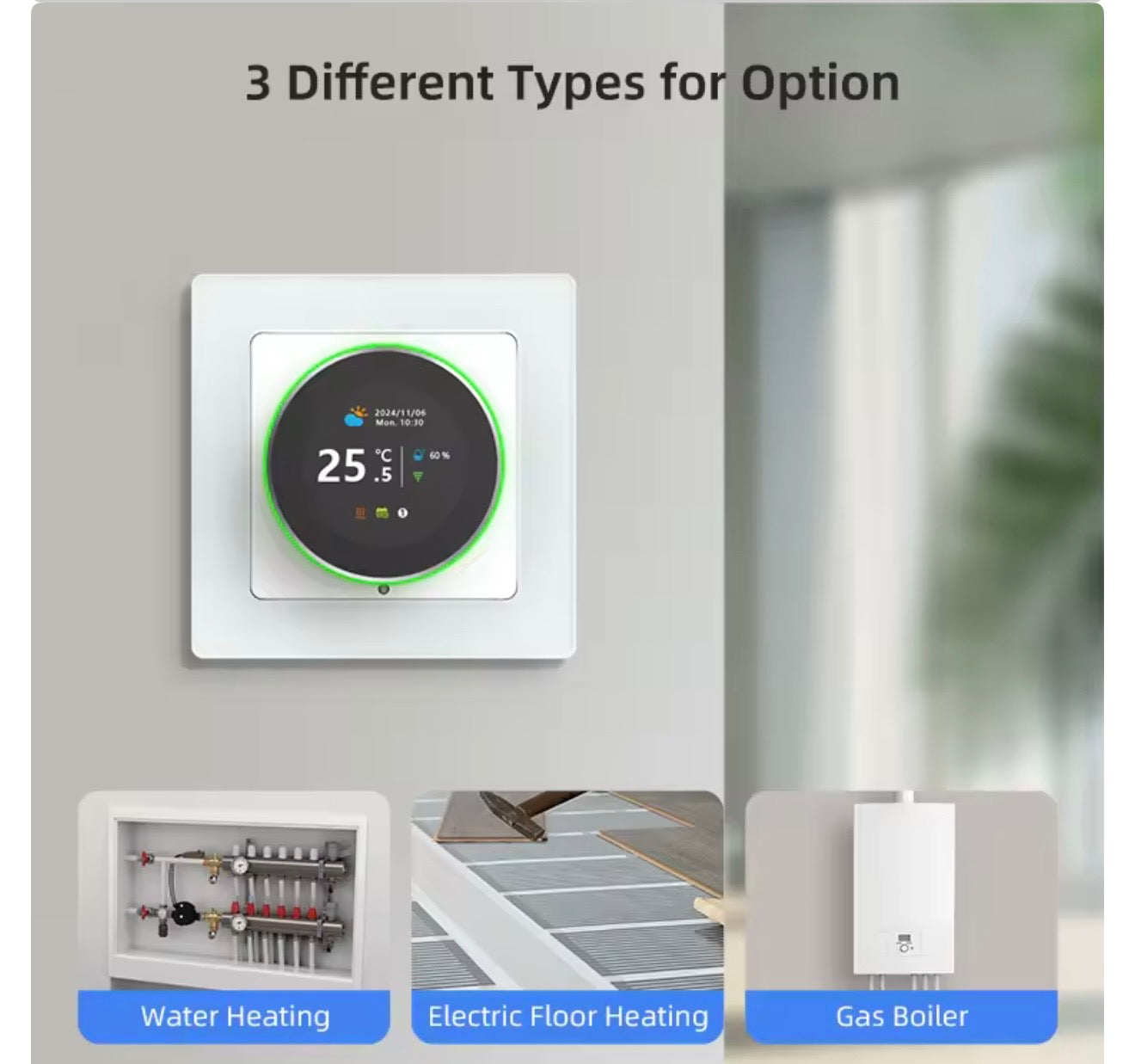

Which Version Do I Need?
| Heating Type |
Load Rating |
External Sensor |
| Electric Underfloor Heating |
16A |
✅ Included |

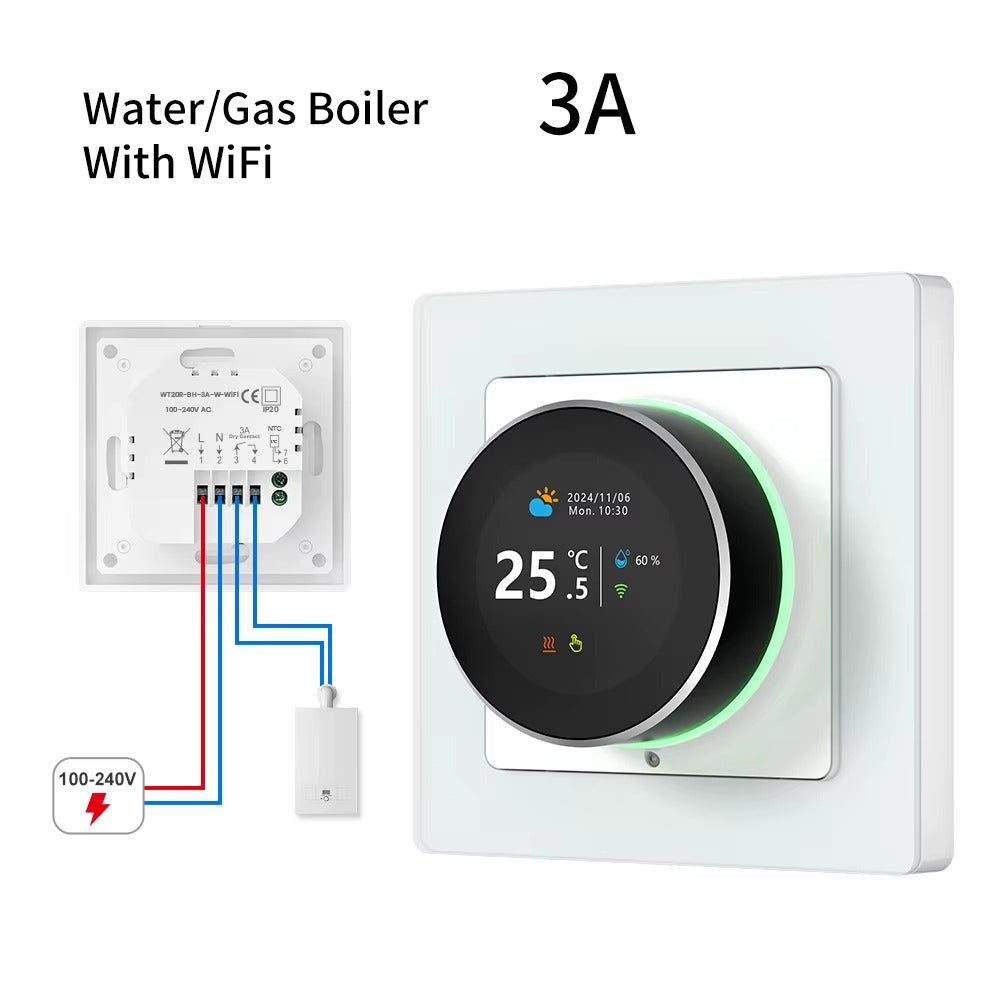

| Water Underfloor Heating / Wall-hung Gas Boiler |
3A |
❌ Not included |
Please select the correct variant for your heating system when ordering.
Key Features
-

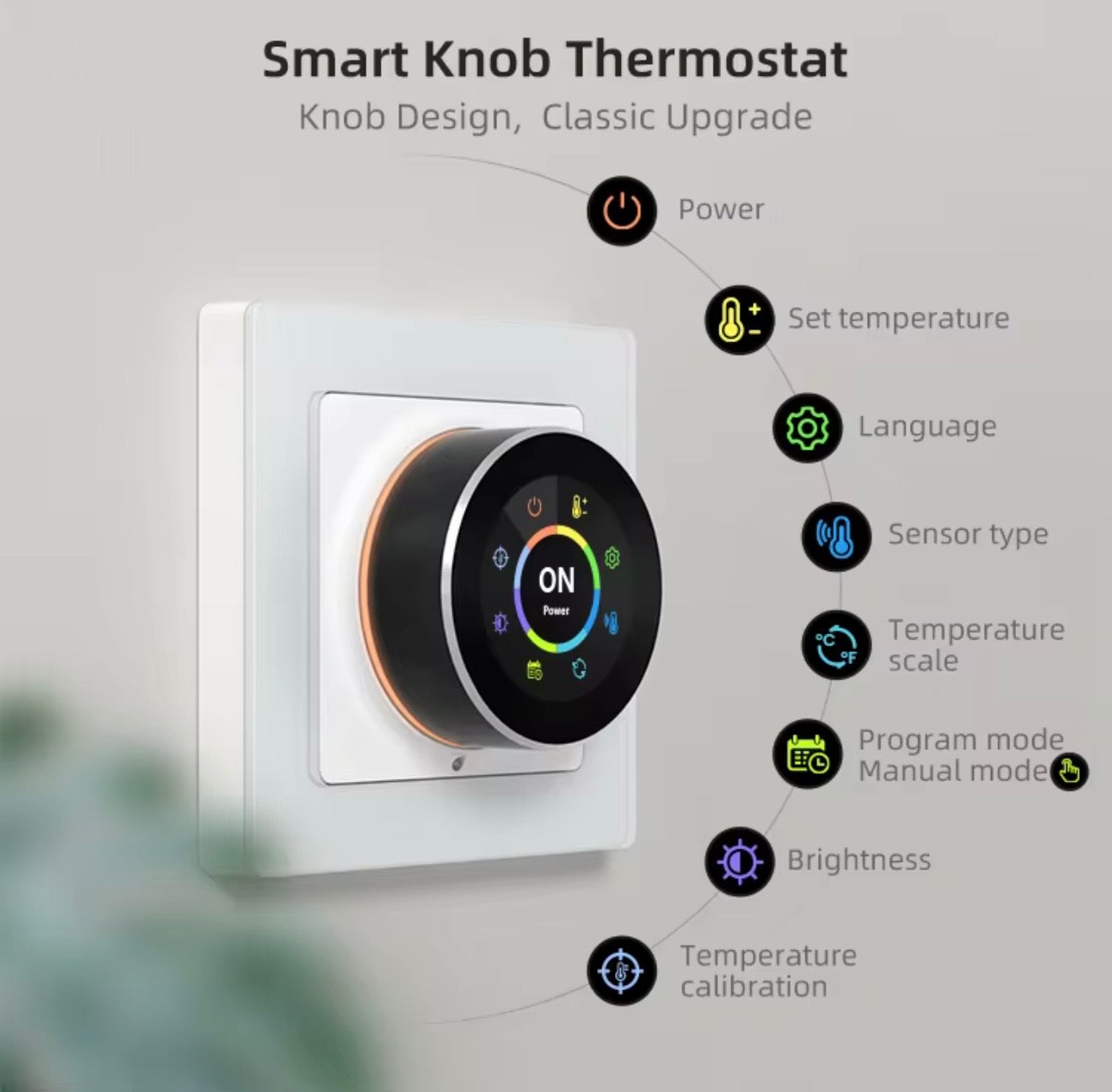

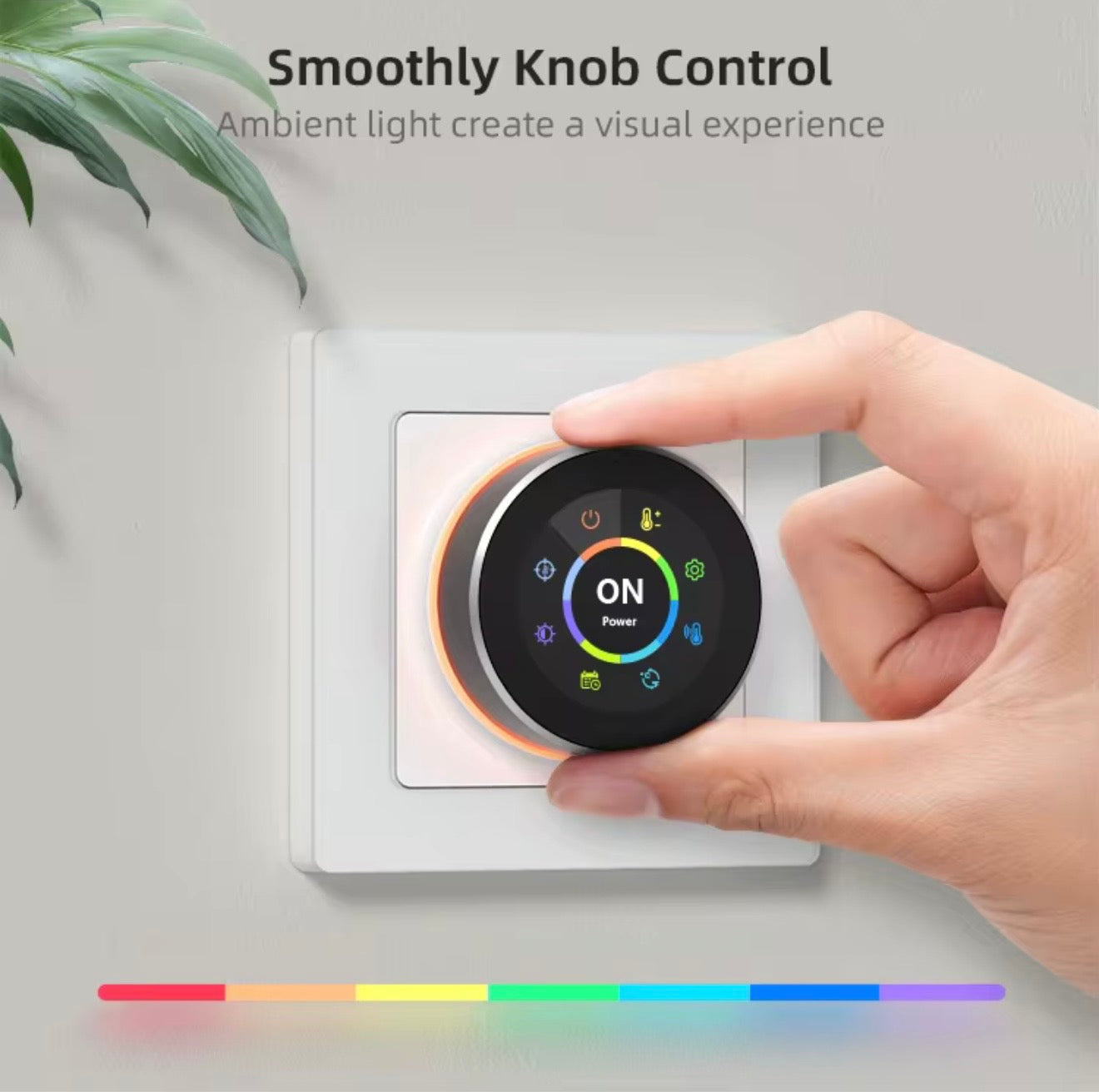

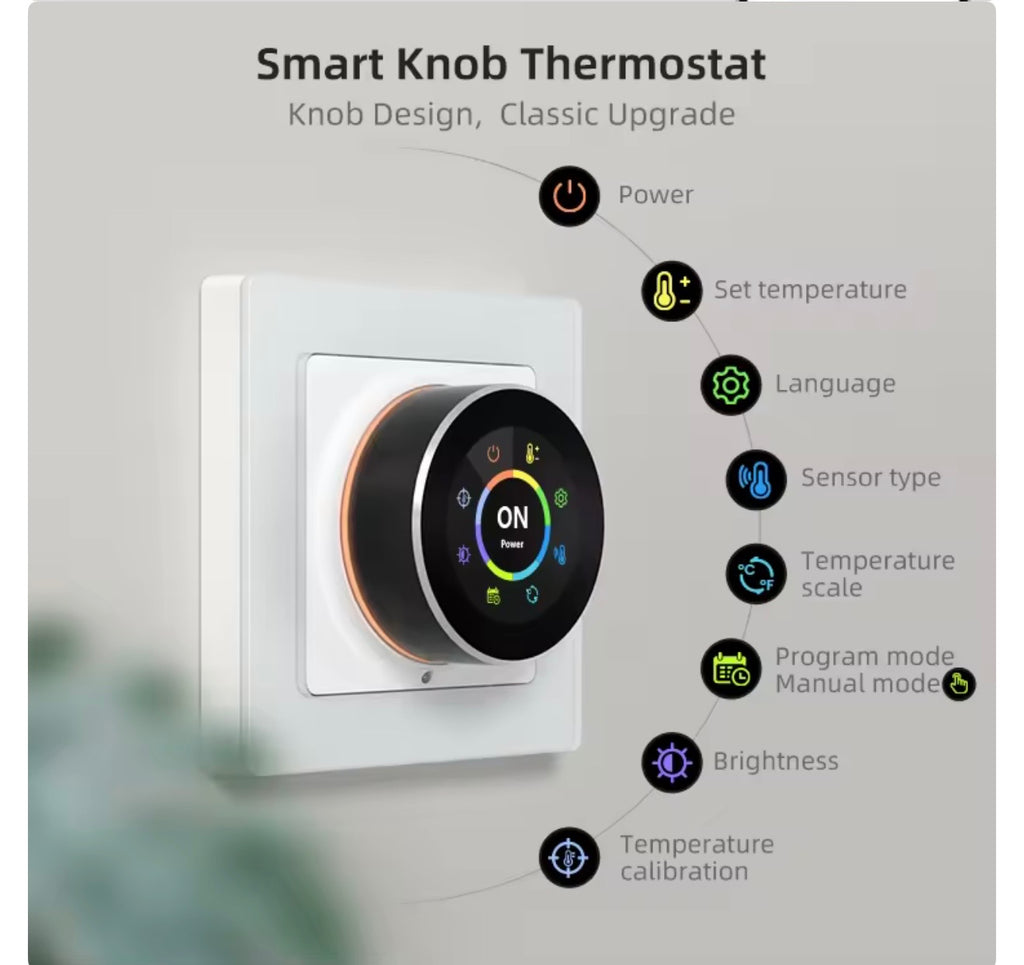

Rotatable Knob Design – Simple and intuitive operation.
-

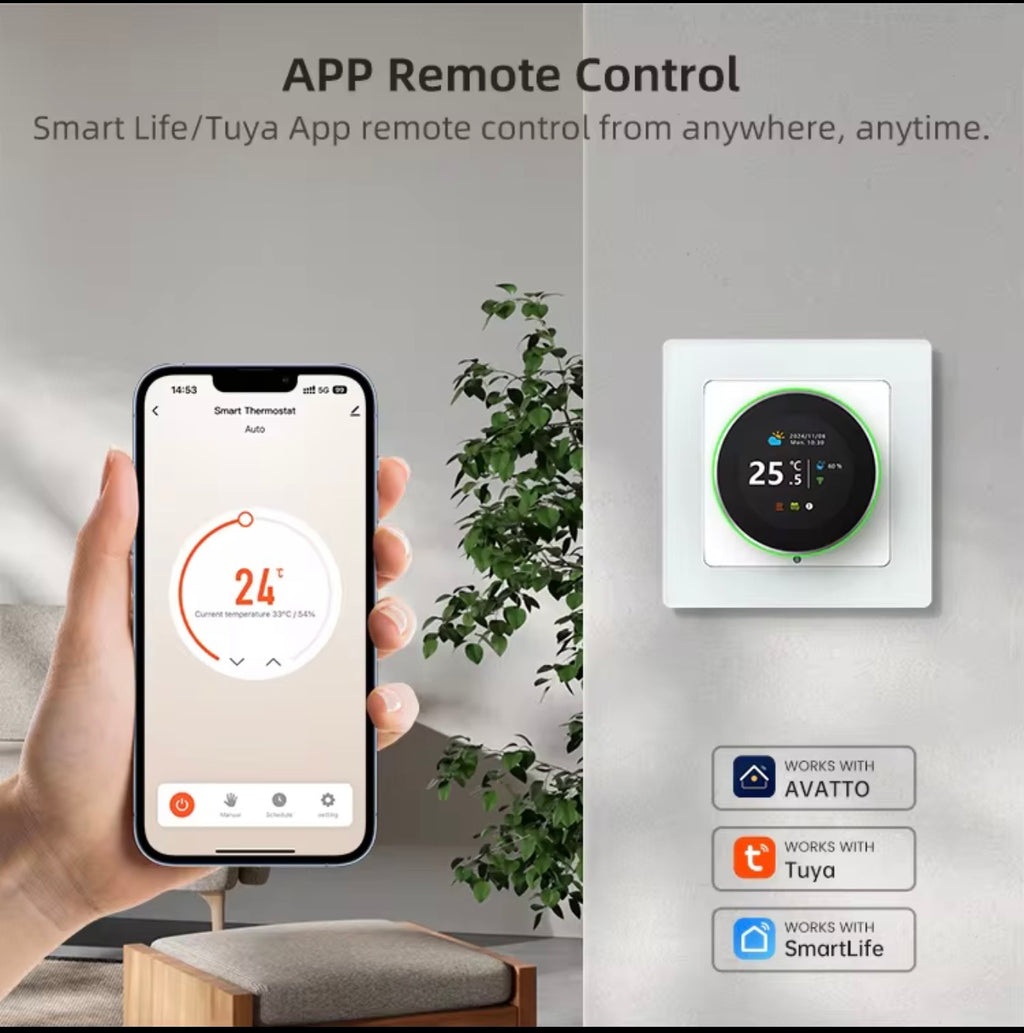

APP Remote Control – Control from anywhere via the Smart Life / Tuya app.
-
Voice Control – Compatible with Amazon Alexa, Google Home, and Yandex Alice.
-

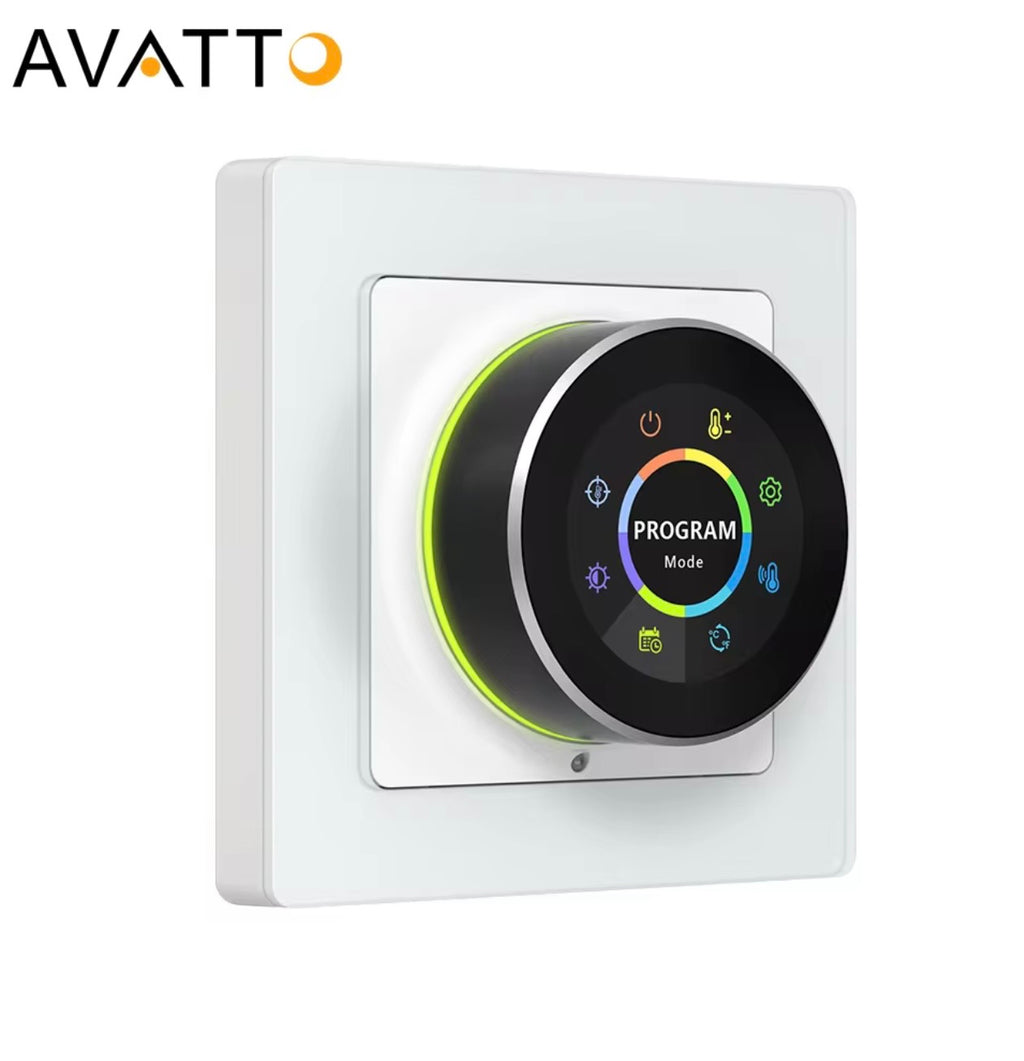

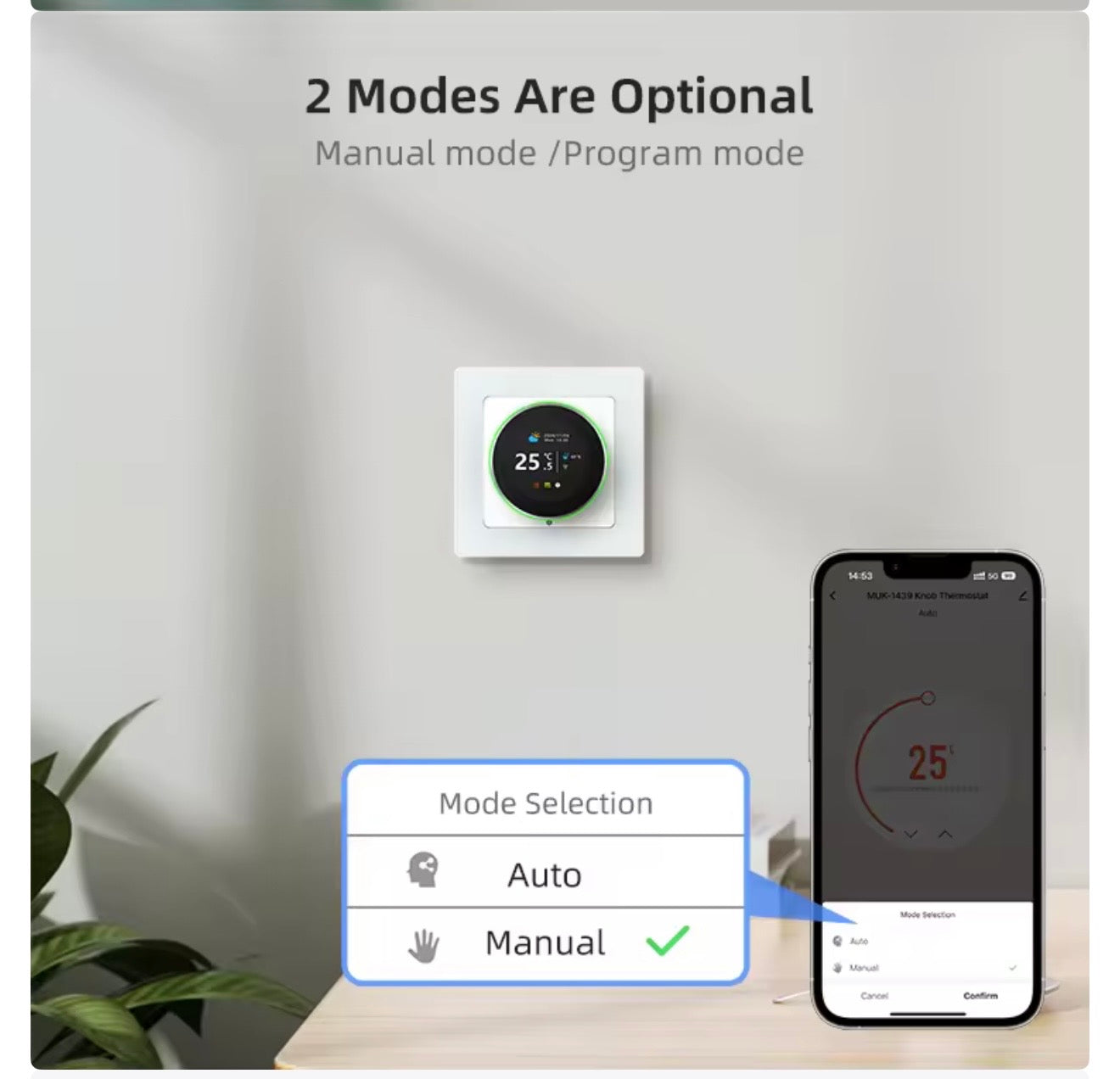

Two Modes – Manual mode or Program mode.
-
Programming Mode – 5+2 / 6+1 / 7-day scheduling, 6 time slots daily with individual temperature settings.
-
Adjustable Backlight – Brightness adjustable or fully off to avoid disturbing sleep.
-

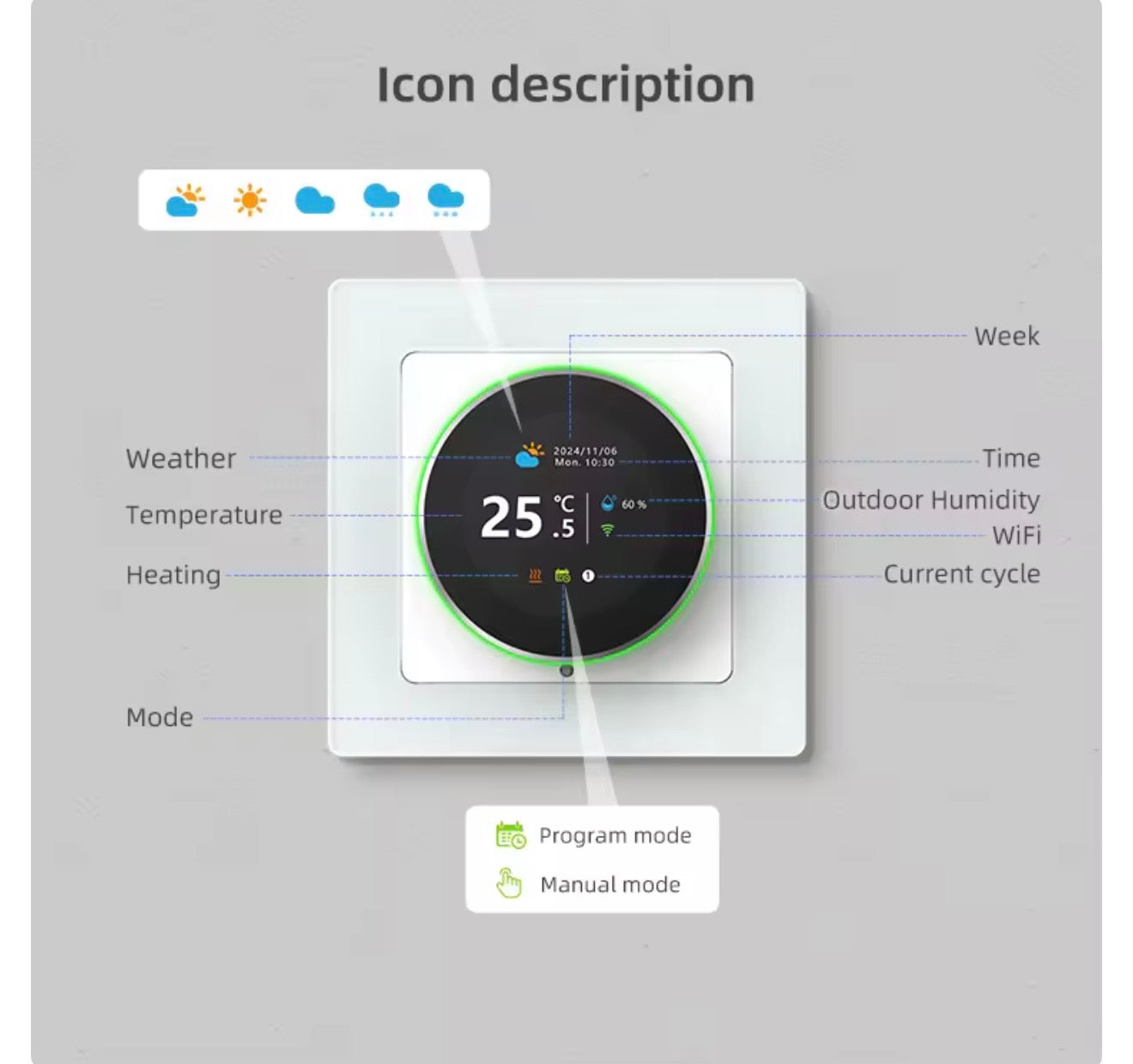

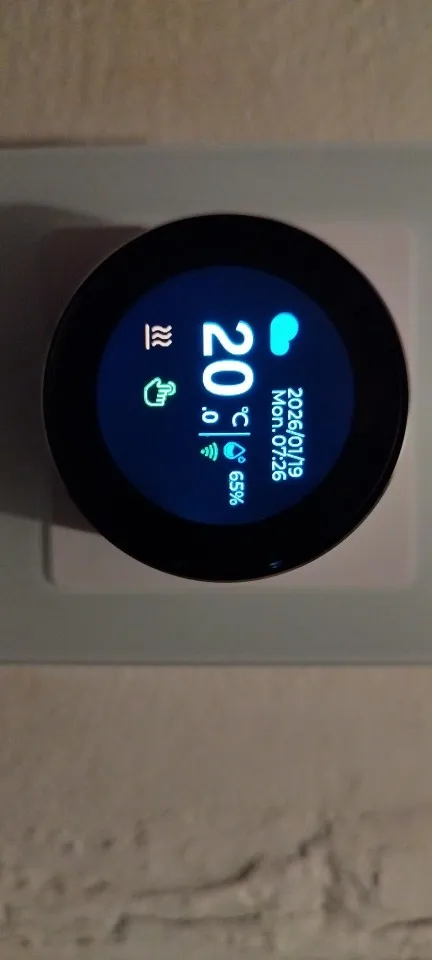

TFT Screen – Displays weather, outdoor humidity, temperature, clock, and more.
-
Disassemblable Design – Front and rear parts can be separated for easy installation.

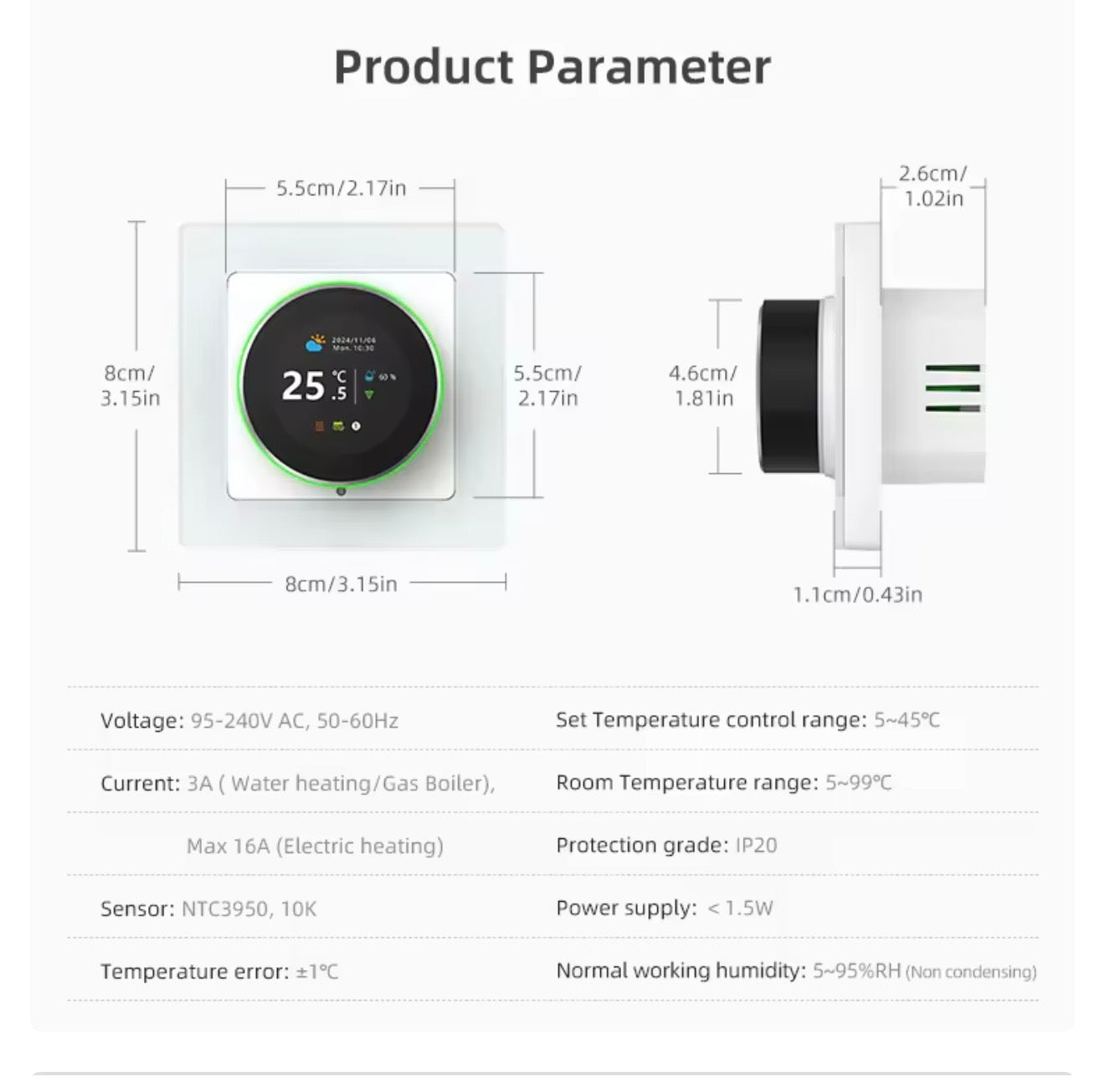

Specifications
-
Model: WT20R
-
Power Supply: AC 100–240V (N: Neutral wire, L: Live wire)
-
Load: 16A (Electric Underfloor Heating) / 3A (Water Underfloor Heating / Wall-hung Boiler)
-
WiFi: 2.4GHz only
-
App: AVATTO / Smart Life / Tuya
-
Voice Control: Amazon Alexa, Google Home, Yandex Alice
-
Certification: CE
-
Origin: Mainland China
Setup Instructions

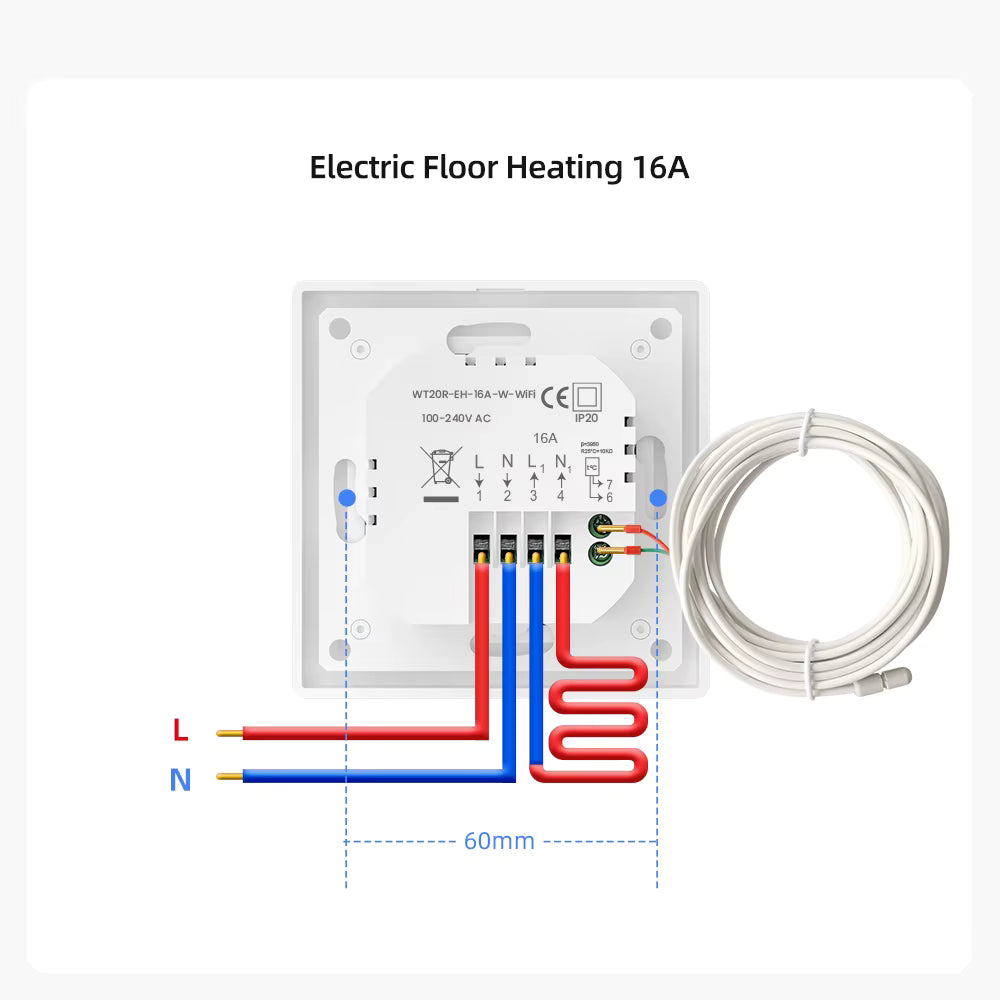

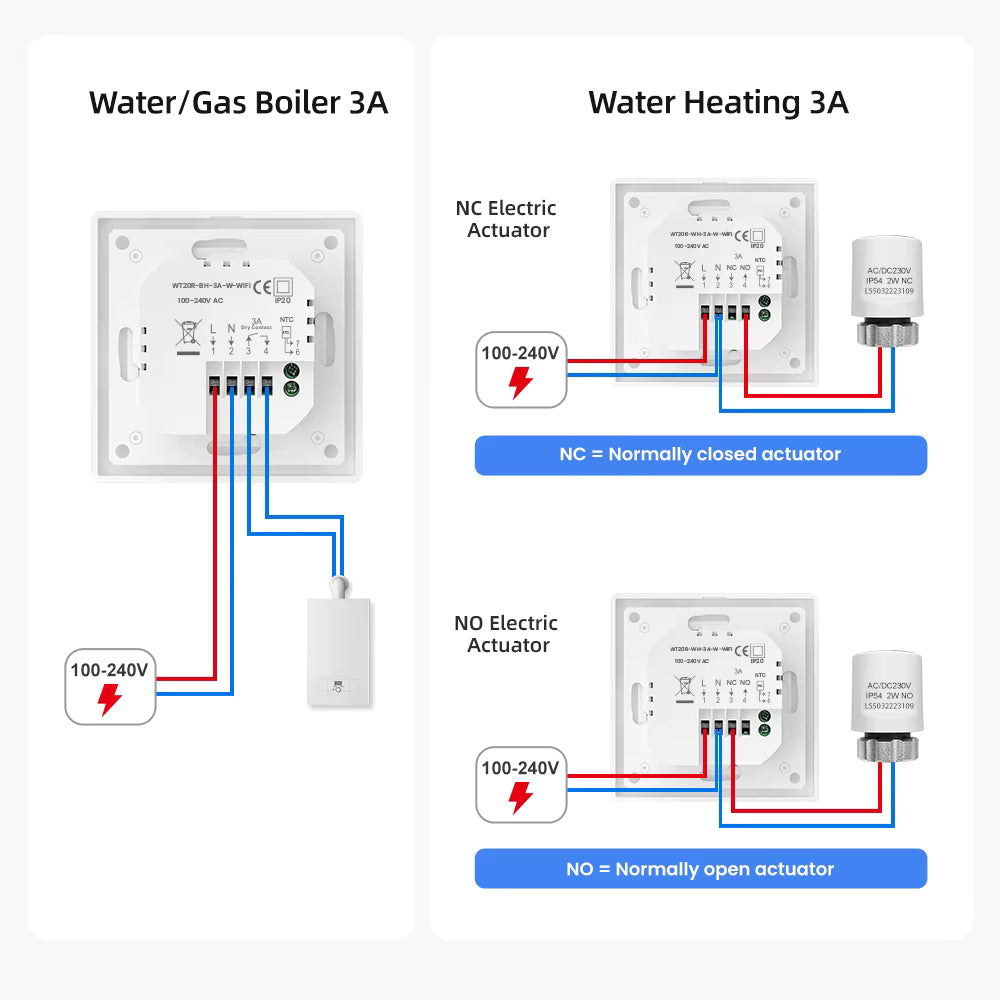

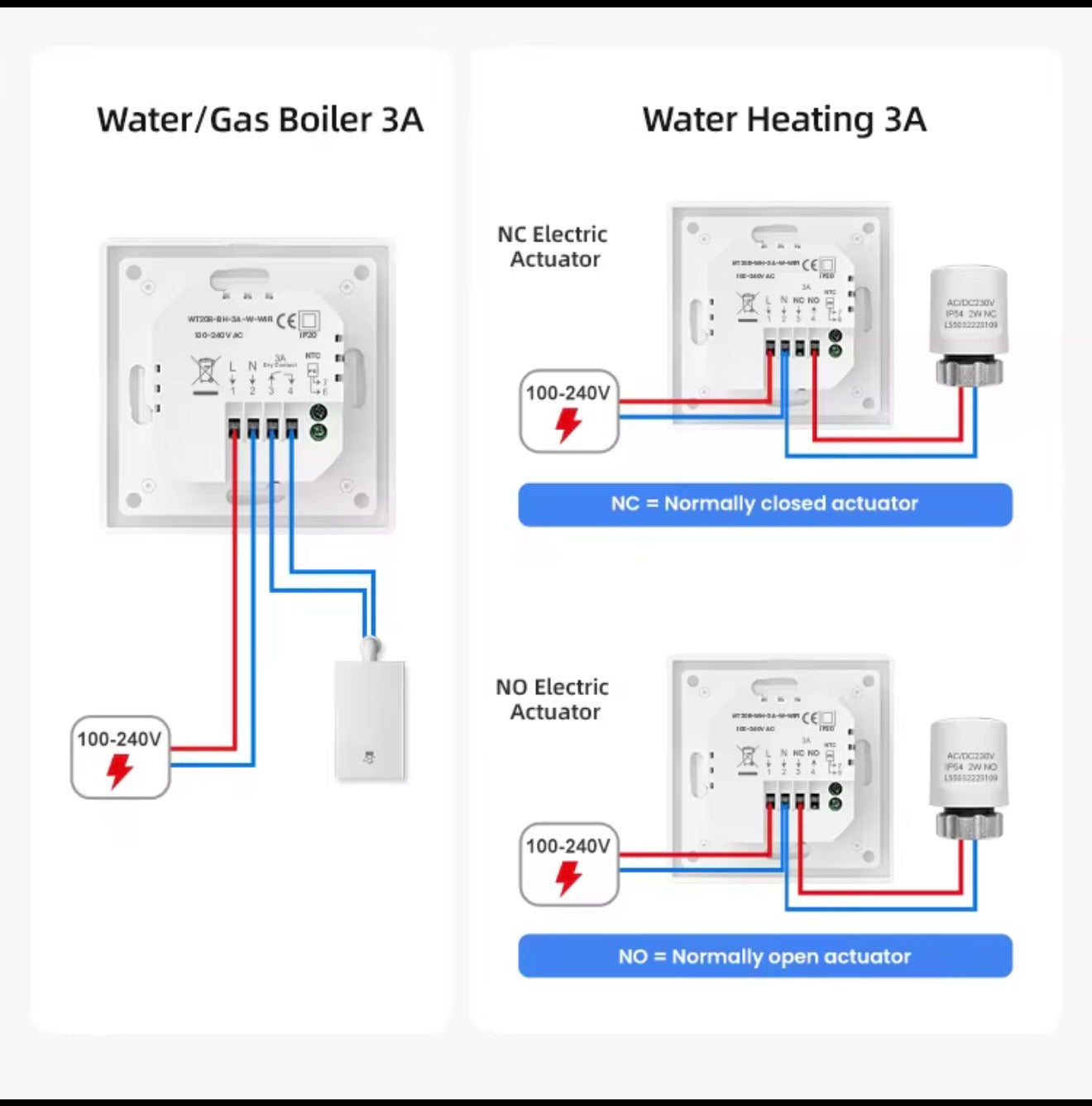

- Connect power supply wires (refer to the included manual for cable connection methods).
- On the main interface, press and hold the knob for 5 seconds until the WiFi indicator flashes – the device is now in pairing mode.
- Open the AVATTO / Smart Life / Tuya app and connect to the device.
- Authorise your voice assistant within the app for voice control.

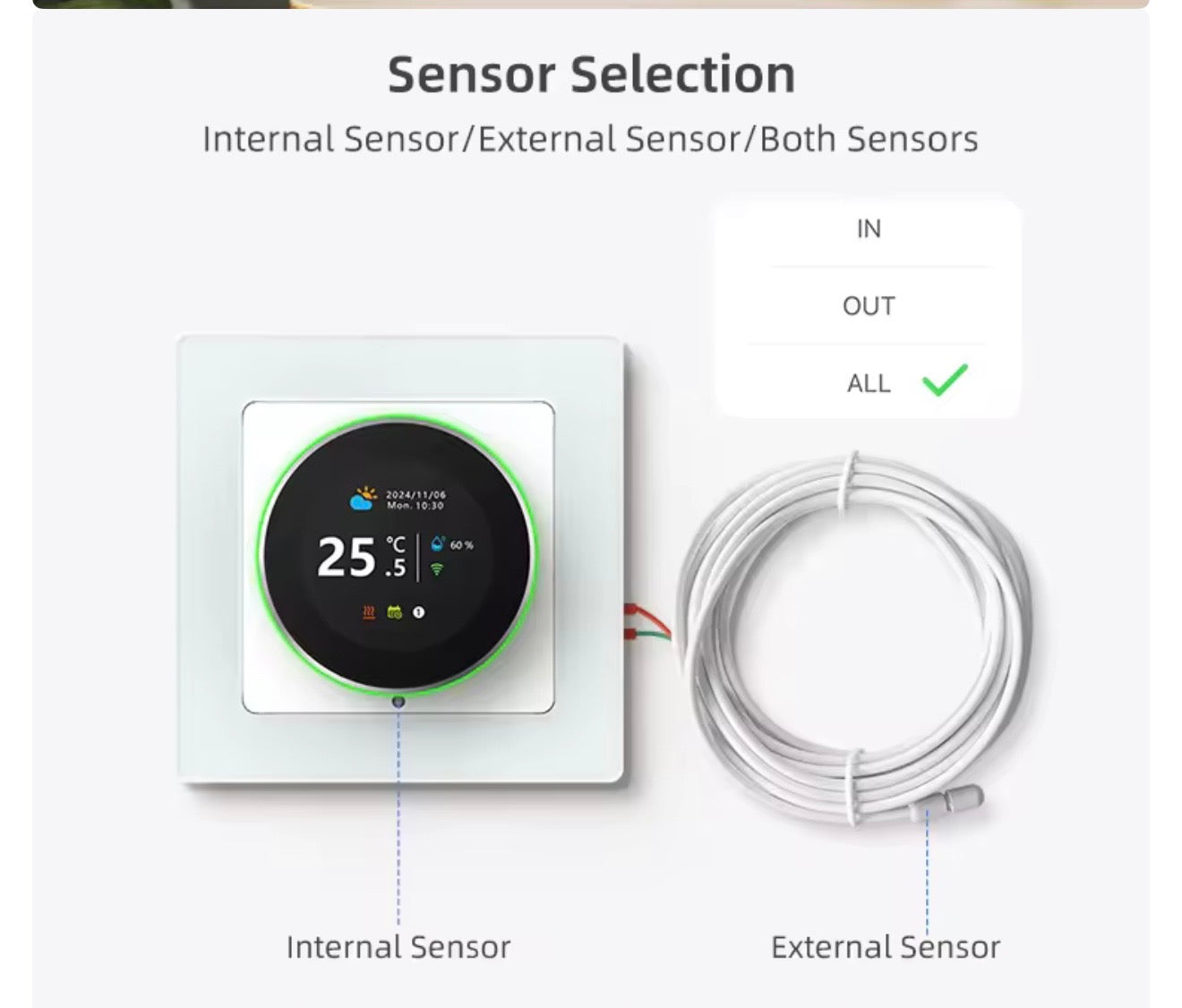

⚠️ WiFi must be 2.4GHz. The Electric Underfloor Heating version includes an external sensor. The Water/Gas Boiler version does not. If you encounter any issues, please contact our customer support team.
